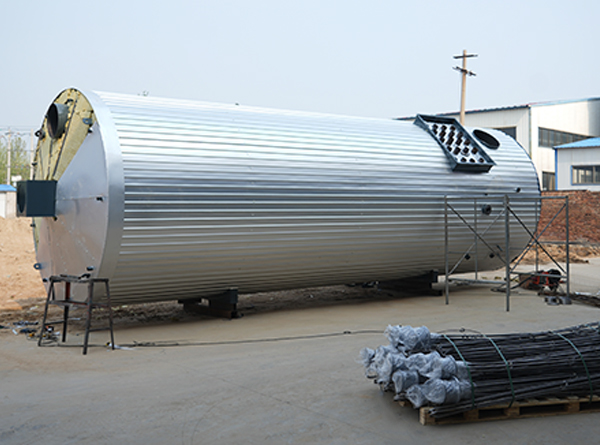

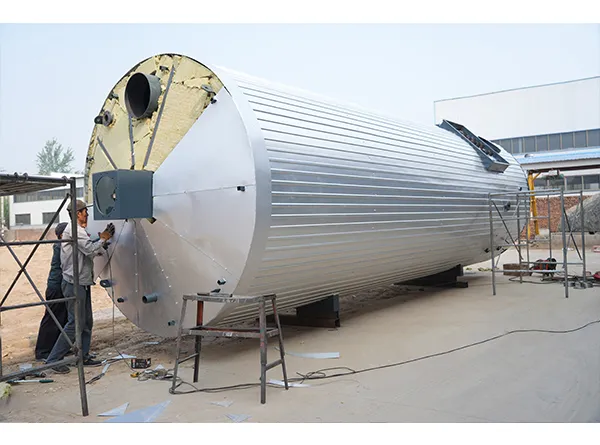

Asphalt Heating Storage Tank: Introduction, Parameters, Features, Advantages, and Applications

An asphalt heating storage tank is a specialized piece of equipment designed for the storage, heating, insulation, and controlled discharge of asphalt materials. Asphalt is widely used in road construction, waterproofing, bridge engineering, airport paving, and industrial coating applications. Because asphalt has high viscosity and becomes difficult to handle at lower temperatures, it must be stored under controlled thermal conditions to maintain fluidity and workability. A high-quality asphalt heating storage tank solves this problem by keeping the asphalt at a suitable temperature and ensuring safe, efficient, and continuous operation.

This type of tank is an essential component in asphalt production, asphalt mixing plants, road maintenance facilities, and other bitumen-related processing systems. It is engineered to reduce heat loss, improve operational efficiency, and provide reliable storage for large volumes of asphalt over long periods. Depending on the design, asphalt heating storage tanks may use thermal oil heating, electric heating, steam heating, or direct fire heating methods. They are usually equipped with insulation layers, temperature control systems, agitators, level indicators, safety valves, and discharge pipelines to meet different industrial requirements.

1. Introduction to Asphalt Heating Storage Tank

The main function of an asphalt heating storage tank is to store asphalt in a liquid state while maintaining the temperature necessary for pumping and mixing. Asphalt hardens or becomes semi-solid when the temperature drops, which can interrupt production and create operational delays. Therefore, the tank must provide stable heating and effective insulation to prevent material solidification.

In practical use, asphalt heating storage tanks are designed for:

- Long-term asphalt storage
- Continuous heat preservation
- Efficient transportation and discharge
- Temperature stability
- Reduced energy consumption
- Improved safety in asphalt handling

The tank body is typically manufactured from carbon steel or stainless steel, depending on the working environment and performance requirements. The inner structure is carefully designed to withstand high temperatures and corrosion caused by bitumen. The outer shell is usually covered with thermal insulation material such as rock wool, glass wool, polyurethane foam, or other high-performance insulating layers.

2. Working Principle

The working principle of an asphalt heating storage tank is relatively straightforward. Asphalt enters the tank through the feeding port and is then heated by an internal or external heating system. Once the temperature reaches the required level, the insulation system helps retain heat and prevents rapid cooling.

The heating process may involve:

- Thermal oil circulation: Hot thermal oil flows through heating coils inside the tank.
- Electric heating: Electric heating elements raise the asphalt temperature directly or indirectly.
- Steam heating: Steam coils are installed for heat transfer.
- Direct flame heating: Used in some larger systems, though less common due to safety and control concerns.

Advanced tanks often include automatic temperature monitoring and control systems. These systems can regulate the heating process accurately, ensuring that the asphalt remains within the desired working range. Some tanks also use agitators or circulation systems to keep the asphalt uniform and prevent localized overheating.

3. Main Features

An asphalt heating storage tank is usually equipped with several important features that improve reliability and performance:

3.1 Excellent Thermal Insulation
The tank is wrapped with high-efficiency insulation materials to minimize heat loss. This allows the asphalt to stay hot for extended periods while reducing energy consumption.

3.2 Stable Temperature Control
A temperature control system ensures the asphalt remains in an optimal working state. This is important for preventing solidification and improving pumping performance.

3.3 Corrosion Resistance
Since asphalt can contain impurities and operate under high temperatures, the tank material must have strong corrosion resistance and durability.

3.4 Safe Operation
Safety components such as pressure relief valves, overflow protection, temperature alarms, and emergency shutdown functions help ensure safe operation.

3.5 Efficient Heating
Different heating methods can be selected according to project needs. These systems are designed to heat asphalt evenly and efficiently.

3.6 Large Storage Capacity
Asphalt heating storage tanks are available in many capacities, from small-scale units to large industrial tanks, making them suitable for diverse production needs.

3.7 Convenient Discharge
The tank is usually designed with discharge pumps and pipelines that make asphalt unloading easy, fast, and controlled.

3.8 Automation Compatibility
Modern tanks can be integrated with automatic control systems for heating, level detection, circulation, and remote monitoring.

4. Advantages of Asphalt Heating Storage Tank

Using an asphalt heating storage tank offers many practical and economic advantages:

4.1 Improved Productivity
By keeping asphalt at a usable temperature, the tank ensures continuous production without interruption caused by cooling or solidification.

4.2 Energy Saving
High-quality insulation reduces heat loss significantly, lowering energy use and operating costs.

4.3 Reduced Material Waste
Stable temperature control helps prevent asphalt from becoming unusable, reducing waste and material loss.

4.4 Easier Transportation and Pumping
Heated asphalt has lower viscosity, making it easier to pump, transport, and mix.

4.5 Better Quality Control
Uniform heating helps maintain product consistency, which is important for asphalt paving and industrial applications.

4.6 Long Service Life
A well-designed tank made from durable materials can operate reliably for many years with proper maintenance.

4.7 Flexible Installation
These tanks can be installed in different types of facilities, including road construction sites, plant yards, and industrial production bases.

4.8 Enhanced Safety
With proper insulation and automated control systems, the risk of overheating, leakage, or accidental solidification is reduced.

5. Application Scenarios

Asphalt heating storage tanks are widely used in many industries and construction scenarios. Common application areas include:

5.1 Road Construction Projects
In highway, municipal road, and airport paving projects, asphalt must be kept hot and ready for use. Storage tanks ensure a stable supply during paving operations.

5.2 Asphalt Mixing Plants
These tanks are an important part of asphalt mixing plants, where large quantities of bitumen are required for batch or continuous mixing processes.

5.3 Road Maintenance and Repair
For pothole repair, resurfacing, and patching work, heated asphalt tanks help provide ready-to-use material quickly.

5.4 Waterproofing Engineering
Asphalt is widely used in waterproofing membranes, coatings, and protective layers for roofs, foundations, tunnels, and underground structures.

5.5 Industrial Coating Applications
Certain industrial processes use heated asphalt for corrosion protection, pipe coating, and surface treatment.

5.6 Bitumen Storage Terminals
Large storage tanks are used in terminals and logistics centers to hold asphalt before distribution to various users.

5.7 Remote Construction Sites
Projects in cold or isolated regions often require insulated asphalt tanks to maintain material performance over long transport and storage cycles.

6. Common Technical Parameters

Below is a general parameter overview for an asphalt heating storage tank. Actual specifications may vary according to capacity, heating method, and project requirements.

| Parameter | Typical Range / Description |
|---|---|
| Tank Capacity | 10 m³ to 1000 m³ or more |
| Working Temperature | 120°C to 180°C, depending on asphalt type |
| Heating Method | Thermal oil, electric, steam, or direct fire |
| Tank Material | Carbon steel, stainless steel, or customized alloy steel |
| Insulation Material | Rock wool, glass wool, polyurethane foam, etc. |
| Heating Efficiency | High-efficiency heat transfer design |
| Temperature Control | Manual or automatic digital control |
| Discharge System | Bottom discharge, pump discharge, or pipeline discharge |
| Agitator | Optional, for temperature uniformity |
| Safety Devices | Pressure valve, temperature alarm, overflow protection |
| Power Supply | Customized according to heating system |
| Installation Type | Horizontal or vertical |
| Surface Treatment | Anti-rust coating, heat-resistant finish |
| Operating Mode | Batch storage, continuous heating, or cyclic use |

7. Product Structure

A typical asphalt heating storage tank consists of several major parts:

- Tank body: Main storage chamber for asphalt
- Heating system: Thermal oil coils, electric elements, or steam pipes
- Insulation layer: Prevents heat loss
- Outer shell: Protects internal components and improves durability
- Temperature sensors: Monitor asphalt heat level
- Control cabinet: Manages heating and safety systems
- Discharge port: Allows controlled asphalt release
- Support structure: Ensures stability during operation
- Access platform and ladder: Facilitates inspection and maintenance

8. Selection Considerations

When choosing an asphalt heating storage tank, several factors should be considered:

8.1 Capacity Requirements
Select a tank size based on daily asphalt consumption and storage needs.

8.2 Heating Method
Choose the most suitable heating system according to energy source availability and operating conditions.

8.3 Insulation Performance
Good insulation is critical for minimizing heat loss and reducing operating costs.

8.4 Control Accuracy
A precise temperature control system improves safety and product quality.

8.5 Maintenance Convenience
The structure should allow easy inspection, cleaning, and repair.

8.6 Installation Environment
Consider ambient temperature, weather conditions, and available space.

9. Maintenance Tips

Proper maintenance extends the life of the tank and ensures stable performance:

- Check insulation layers regularly for damage
- Inspect heating elements and circulation pipelines
- Calibrate temperature sensors periodically
- Clean asphalt residue and blockages
- Verify valve and pump performance
- Monitor for leaks or corrosion
- Perform safety system tests before operation

10. FAQ

Q1: What is the main purpose of an asphalt heating storage tank?
The main purpose is to store asphalt at a controlled temperature so it remains fluid and ready for pumping, mixing, or discharge.

Q2: What heating methods are available?
Common heating methods include thermal oil heating, electric heating, steam heating, and sometimes direct fire heating.

Q3: Can the tank be customized?
Yes. Capacity, material, heating system, insulation thickness, and control features can all be customized according to project needs.

Q4: Why is insulation important?
Insulation reduces heat loss, saves energy, and helps maintain a stable asphalt temperature for long periods.

Q5: Is automatic temperature control necessary?
It is highly recommended because it improves accuracy, safety, and operational efficiency.

Q6: What industries use this tank?
It is used in road construction, asphalt plants, waterproofing projects, maintenance work, industrial coating, and storage terminals.

Q7: How is asphalt discharged from the tank?
Asphalt is usually discharged through bottom outlets, pumps, or pipeline systems designed for hot viscous materials.

Q8: How do you prevent asphalt from solidifying?
Maintain the correct operating temperature, use proper insulation, and ensure the heating system is functioning correctly.

11. Conclusion

An asphalt heating storage tank is a vital industrial solution for safely storing and handling asphalt under stable thermal conditions. It helps prevent solidification, supports continuous production, improves energy efficiency, and ensures better material quality. With its strong insulation, reliable heating system, flexible capacity options, and wide range of applications, it plays an important role in modern road construction and asphalt processing industries.

Whether used in a large-scale asphalt plant, a road maintenance facility, or a waterproofing production line, this equipment provides dependable performance and operational convenience. Choosing the right tank with the appropriate heating method, capacity, and control system can significantly improve project efficiency and reduce long-term costs.

---
